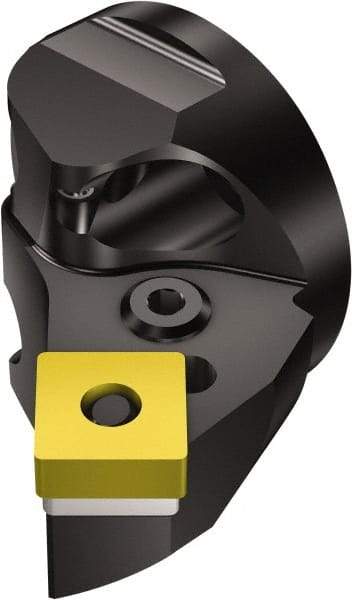

Sandvik Coromant - Left Hand Cut, Size 40, SNMG 432 Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 27mm Ctr to Cutting Edge, 38.32mm Head Length, Through Coolant, Series T-Max P
Item #: 54904313
Brand: Sandvik Coromant
Model #: 5856120
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 40 |
| Series Name | T-Max P |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 38.32 |
| Head Length/Projection (Decimal Inch) | 1.5087 |
| Insert Style | SNMG 432 |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Holding Method | Lever |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 40.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.5748 |
| Center to Cutting Height (mm) | 18.68 |
| Center to Cutting Height (Decimal Inch) | 0.7354 |
| Complete Insert Compatibility | SNMG 12 04 08 |
