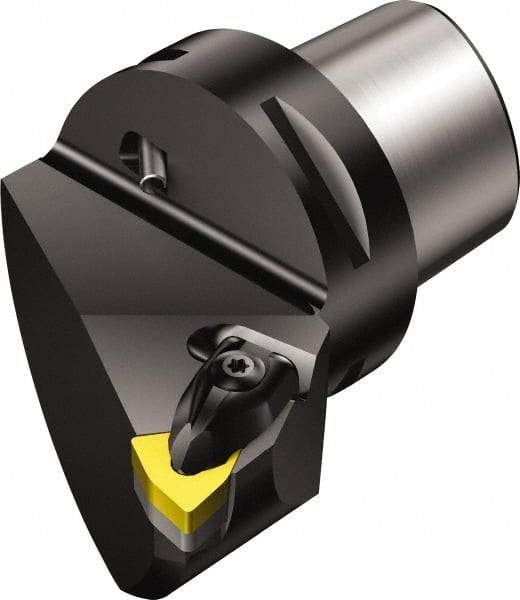

Sandvik Coromant - Left Hand Cut, Size C3, WNMG 332 Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 22mm Ctr to Cutting Edge, 40mm Head Length, Through Coolant, Series T-Max P
Item #: 54903471
Brand: Sandvik Coromant
Model #: 5726964
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C3 |
| Series Name | T-Max P |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 40.00 |
| Head Length/Projection (Decimal Inch) | 1.5748 |
| Insert Style | WNMG 332 |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Insert Holding Method | Wedge Clamp |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 60.00 |
| Minimum Hole Diameter (Decimal Inch) | 2.3622 |
| Complete Insert Compatibility | WNMG 06 04 08 |
