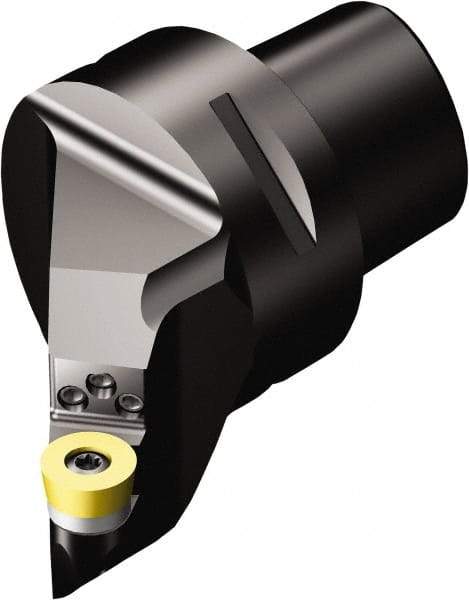

Sandvik Coromant - Left Hand Cut, Size C6, RCMT 12 04 M0 Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 45mm Ctr to Cutting Edge, 65mm Head Length, Through Coolant, Series CoroTurn 107
Item #: 54903281
Brand: Sandvik Coromant
Model #: 6537689
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | CoroTurn 107 |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 65.00 |
| Head Length/Projection (Decimal Inch) | 2.5591 |
| Insert Style | RCMT 12 04 M0 |
| Center to Cutting Edge (mm) | 45.00 |
| Center to Cutting Edge (Decimal Inch) | 1.7717 |
| Insert Holding Method | Screw & Clamp |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 150.00 |
| Minimum Hole Diameter (Decimal Inch) | 5.9055 |
| Complete Insert Compatibility | RCMT 12 04 M0 |
