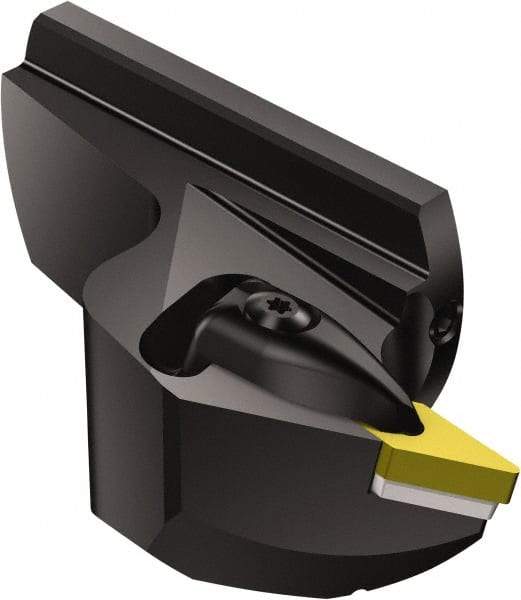

Sandvik Coromant - Left Hand Cut, 100mm Min Bore Diam, Size 80 Steel Modular Boring Cutting Unit Head - 0.7874" Max Bore Depth, Compatible with VNMG 332
Item #: 54903034
Brand: Sandvik Coromant
Model #: 5856126
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 80 |
| Series Name | T-Max P |
| Minimum Bore Diameter (mm) | 100.00 |
| Minimum Bore Diameter (Decimal Inch) | 3.9370 |
| Cutting Direction | Left Hand |
| Maximum Bore Depth (mm) | 20.00 |
| Maximum Bore Depth (Decimal Inch) | 0.7874 |
| Insert Style | VNMG 332 |
| Head Length/Projection (mm) | 45.00 |
| Head Length/Projection (Decimal Inch) | 1.7717 |
| Insert Holding Method | Clamp |
| Toolholder Material | Steel |
| Through Coolant | NonThrough Coolant |
| Center to Cutting Edge (mm) | 64.00 |
| Center to Cutting Edge (Decimal Inch) | 2.5197 |
| Head Diameter Excluding Insert (mm) | 80.00 |
| Head Diameter Excluding Insert (Decimal Inch) | 3.1496 |
| Complete Insert Compatibility | VNMG 16 04 08 |
| Series | T-Max P |
| Modular Connection Size | 80 |
