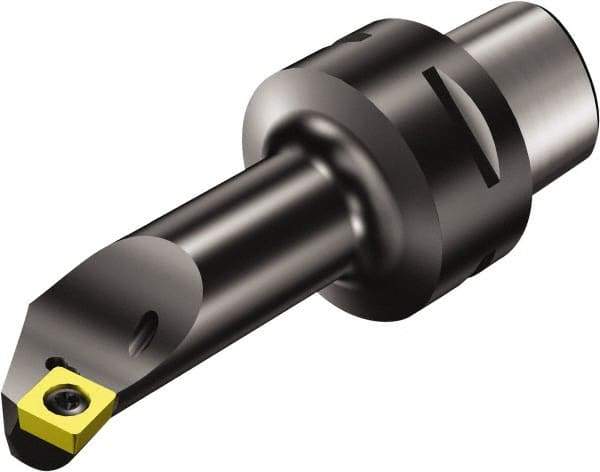

Sandvik Coromant - Right Hand Cut, Size C4, SCMT 3(2.5)2 Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 13mm Ctr to Cutting Edge, 80mm Head Length, Through Coolant, Series CoroTurn 107
Item #: 54902986
Brand: Sandvik Coromant
Model #: 5727636
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | CoroTurn 107 |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 80.00 |
| Head Length/Projection (Decimal Inch) | 3.1496 |
| Insert Style | SCMT 3(2.5)2 |
| Center to Cutting Edge (mm) | 13.00 |
| Center to Cutting Edge (Decimal Inch) | 0.5118 |
| Insert Holding Method | Screw & Clamp |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 25.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.9843 |
| Center to Cutting Height (mm) | 58.00 |
| Center to Cutting Height (Decimal Inch) | 2.2835 |
| Complete Insert Compatibility | SCMT 09 T3 08 |
