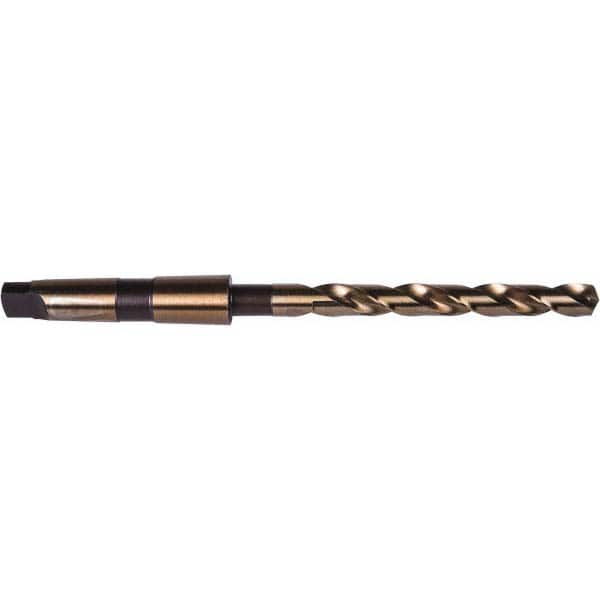

Precision Twist Drill - 53/64", 3MT 135° Point Cobalt Taper Shank Drill Bit
Item #: 78531027
Brand: Precision Twist Drill
Model #: 021353
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Oxide gold finish provides a polished finish and prevents chip building, galling and welding on a workpiece. It is commonly used on low carbon, stainless steel and ferrous metals.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 53/64 |
| Drill Bit Size (Decimal Inch) | 0.8281 |
| Drill Point Angle | 135 |
| Shank Taper Designation | 3MT |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Oxide/Gold |
| Flute Type | Spiral |
| Overall Length (Inch) | 10-3/4 |
| Flute Length (Inch) | 6-1/8 |
| Spiral Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Notched |
| Web Thinning | Web-Thinned |
| Specification Designation | ANSI |
| Drill Bit Grade | General Purpose |
| Series/List | 209CO |
