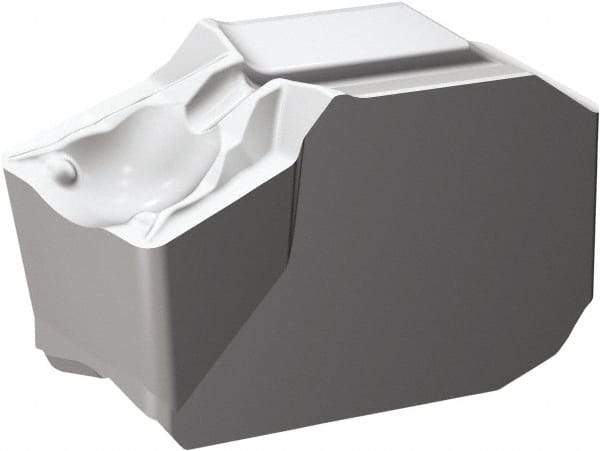

Sandvik Coromant - QDNJ0500 TF Grade H13A Carbide Turning Insert - Uncoated, Irregular, 5.9mm Inscr Circle, 5mm Thick, 0mm Corner Radius
Item #: 54898176
Brand: Sandvik Coromant
Model #: 6427448
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | QDNJ |
| Insert Size | 0500 |
| Material | Carbide |
| Inscribed Circle (mm) | 5.90 |
| Inscribed Circle (Decimal Inch) | 0.2323 |
| Thickness (Decimal Inch) | 0.1969 |
| Thickness (mm) | 5.00 |
| Corner Radius (mm) | 0.00 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Chip Breaker | TF |
| Insert Length (Decimal Inch) | 0.5512 |
| Insert Length (mm) | 14 |
| ISO Number | QDNJ05000004TFH13A |
| Relief Angle | 7 |
| Manufacturers Catalog Number | 6427448 |
| Primary Workpiece Material | N; S |
| Secondary Workpiece Material | N; S |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroCut QD |
| Maximum Depth of Cut (mm) | 3.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1378 |
| Cutting Edge Style | Negative Land/ER Treated |
| Cutting Width (mm) | 5.00 |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Irregular |
