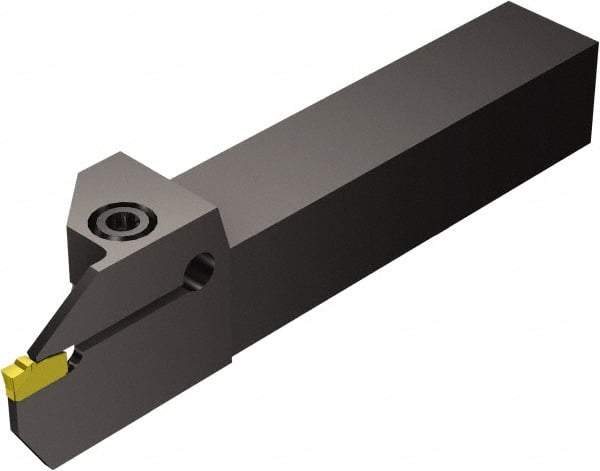

Sandvik Coromant - RF151.23, Internal, Right Hand, 0.98" Max Depth of Cut, Indexable Grooving Tool Holder - N151.2-400-5E Insert Compatibility, 3/4" Shank Height, 3/4" Shank Width, 5" OAL
Item #: 54895347
Brand: Sandvik Coromant
Model #: 5740955
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.9800 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Toolholder Style | RF151.23 |
| Insert Compatibility | N151.2-400-5E |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Height (Inch) | 3/4 |
| Shank Width/Diameter (Inch) | 3/4 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Series | T-Max Q-Cut |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Seat Size | 40 |
| Mount Type | 11 |
| Manufacturers Catalog Number | RF151.23-12-40 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N151.2-400- 5E |
| Shank Diameter (Decimal Inch) | 0.7500 |
