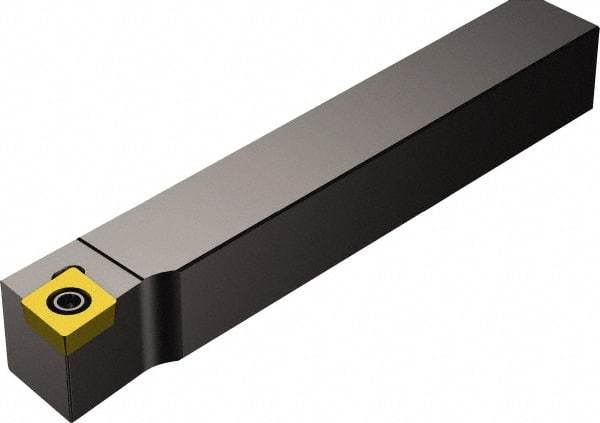

Sandvik Coromant - QS-SCLC, Right Hand Cut, -5° Lead Angle, 12mm Shank Height x 12mm Shank Width, Neutral Rake Indexable Turning Toolholder - 70mm OAL, CCMT 09 T3 08 Insert Compatibility, Series CoroTurn 107
Item #: 54894480
Brand: Sandvik Coromant
Model #: 5739172
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | QS-SCLC |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | CoroTurn 107 |
| Lead Angle | -5 |
| Shank Width (mm) | 12.00 |
| Shank Width (Decimal Inch) | 0.4724 |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7559 |
| Insert Compatibility | CCMT 09 T3 08 |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 12.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4724 |
| Head Length (mm) | 12.00 |
| Head Length (Decimal Inch) | 0.4724 |
| Toolholder Material | Steel |
