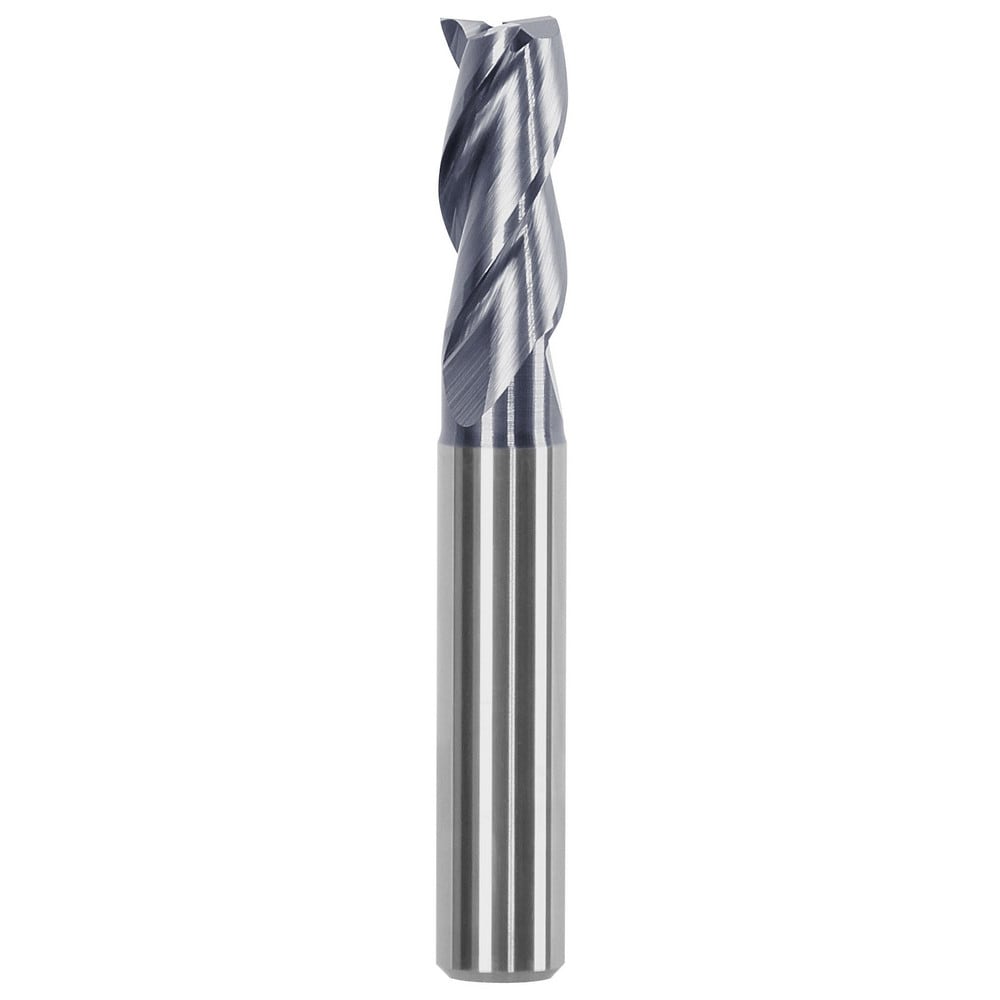

Roughing & Finishing End Mills; Mill Diameter (mm): 2; Flute Type: Spiral; Number Of Flutes: 3; End Mill Material: Solid Carbide; Length of Cut (mm): 7.00; Coating/Finish: Bright/Uncoated
Item #: 23161722
Brand: HAIMER
Model #: F1003NNH0200SAA
Product Specifications
| Mill Diameter (mm) | 2 |
| Flute Type | Spiral |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (mm) | 7.00 |
| Coating/Finish | Bright/Uncoated |
| Centercutting | Yes |
| End Type | Single |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Mill Diameter (Decimal Inch) | 0.0787 |
| Length of Cut (Decimal Inch) | 0.2760 |
| Shank Type | Straight-Cylindrical |
| Length Type | Regular |
| Shank Diameter (Decimal Inch) | 0.2360 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 33; 30 |
| Neck Diameter (Inch) | 0.0750 |
| Material Grade | A |
| Cutting Direction | Right Hand |
| Series | F1003N |
| Shank Diameter Tolerance | h9 |
| UNSPSC Code | 27112803 |
