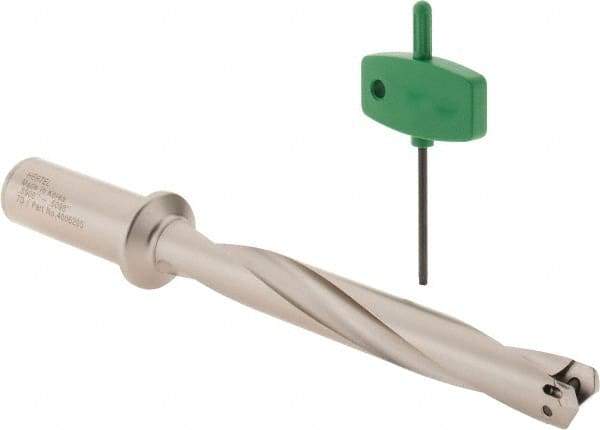

Hertel - 0.4724 to 0.492" Diam, 7xD, 84mm Max Depth, 3/4" Shank Diam, Replaceable Tip Drill - HMD-MAA Toolholder, Series HMD
Item #: 54812268
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | HMD |
| Minimum Drill Diameter (mm) | 12.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.4724 |
| Maximum Drill Diameter (Decimal Inch) | 0.4920 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (Decimal Inch) | 3.3125 |
| Maximum Drill Depth (mm) | 84.00 |
| Shank Diameter (Inch) | 0.75 |
| Shank Diameter (Decimal Inch) | 0.75 |
| Toolholder Style | HMD-MAA |
| Through Coolant | Through Coolant |
| Shank Type | Flange |
| Body Length (Decimal Inch) | 6.3438 |
