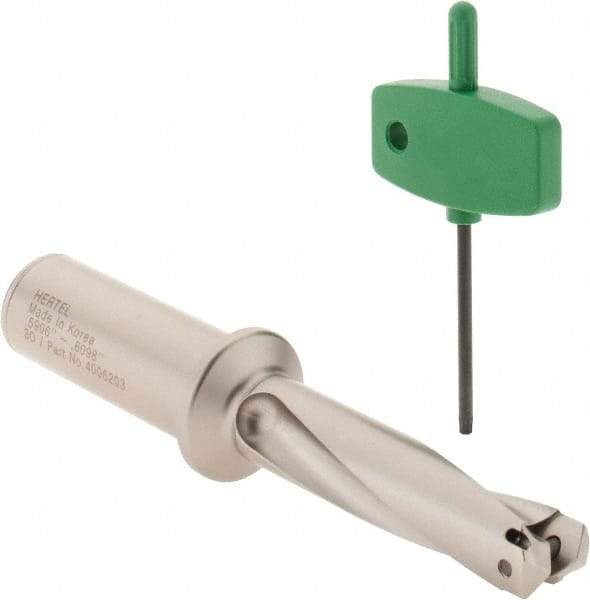

Hertel - 17.5 to 17.99mm Diam, 3xD, 52.5mm Max Depth, 3/4" Shank Diam, 71.2mm Flute, Replaceable Tip Drill - HMD-MAL Toolholder, Series HMD
Item #: 54810213
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | HMD |
| Minimum Drill Diameter (mm) | 17.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.6890 |
| Maximum Drill Diameter (mm) | 17.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.7080 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 2.0669 |
| Maximum Drill Depth (mm) | 52.50 |
| Shank Diameter (Inch) | 0.75 |
| Shank Diameter (Decimal Inch) | 0.75 |
| Toolholder Style | HMD-MAL |
| Through Coolant | Through Coolant |
| Shank Type | Straight |
| Flute Length (mm) | 71.20 |
| Flute Length (Decimal Inch) | 2.7969 |
| Body Length (Decimal Inch) | 5.1563 |
| Toolholder Material | Steel |
| Shank Length (mm) | 50.80 |
| Shank Length (Decimal Inch) | 2.0000 |
