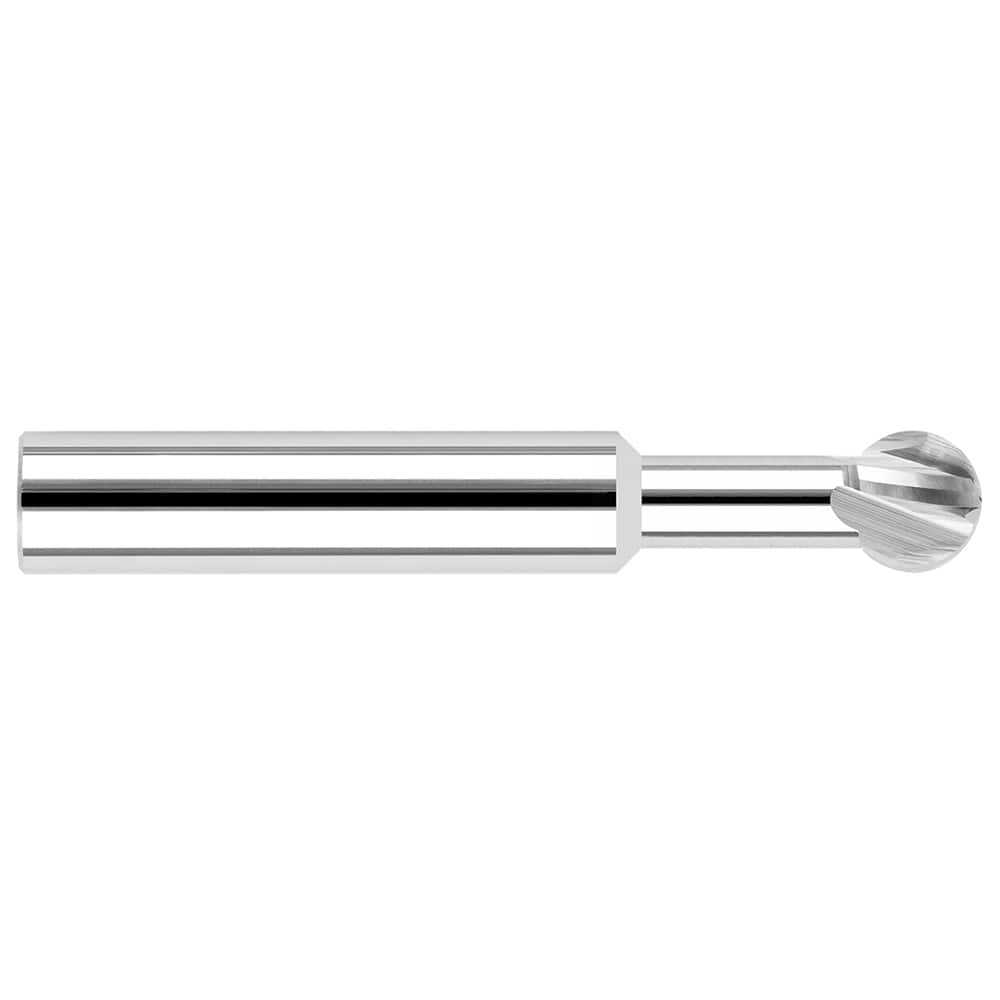

Harvey Tool - 6mm Diam 270° Wrap Angle 0.201" LOC 4-Flute Uncoated Undercut End Mill
Item #: 54749593
Brand: Harvey Tool
Model #: 5296M
Product Specifications
| Mill Diameter (mm) | 6.00 |
| Mill Diameter (Decimal Inch) | 0.2362 |
| Number of Flutes | 4 |
| Length of Cut (Decimal Inch) | 0.2010 |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Single or Double End | Single |
| Overall Length (Inch) | 2-1/2 |
| Radius | 0.1181 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Variable Helix | No |
| Variable Index | No |
| Neck Length (Decimal Inch) | 0.3750 |
| Neck Diameter (Decimal Inch) | 0.1480 |
