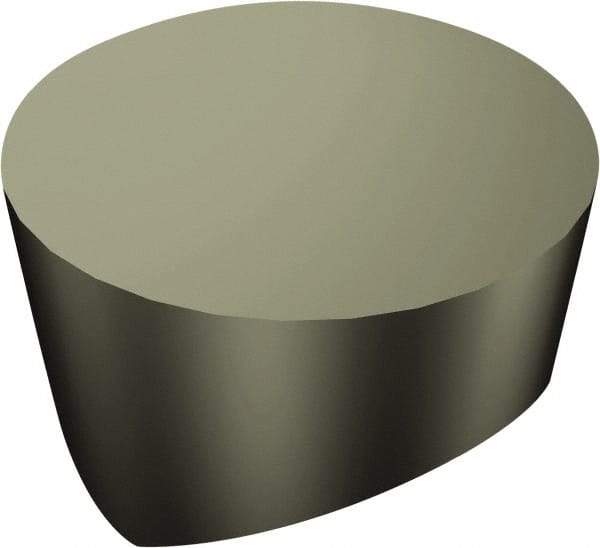

Sandvik Coromant - RCGX35 Grade 670 Ceramic Turning Insert - Uncoated, Round, 3/8" Inscr Circle, 5/16" Thick
Item #: 54748629
Brand: Sandvik Coromant
Model #: 5740044
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | RCGX |
| Insert Size | 35 |
| Material | Ceramic |
| Length (mm) | 7.94 |
| Length (Inch) | 5/16 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.3125 |
| Thickness (mm) | 7.94 |
| Manufacturer's Grade | 670 |
| Coating | Uncoated |
| Hole Diameter (Decimal Inch) | 0.3125 |
| ISO Number | RCGX090700E 670 |
| Relief Angle | 7 |
| Coating Process | Uncoated |
| Manufacturers Catalog Number | RCGX090700E 670 |
| Primary Workpiece Material | H; S |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max |
| Insert Holding Method | Top Clamp |
| Cutting Width (mm) | 9.53 |
| FullRadius | Yes |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Round |
