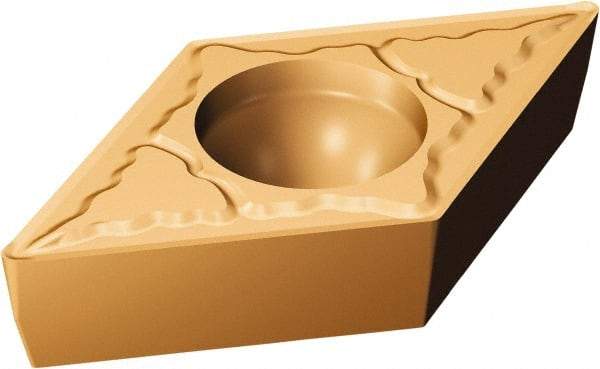

Sandvik Coromant - DCMT21.52 MM Grade 1115 Carbide Turning Insert - TiAlN/AlCr2O3 Finish, 55° Parallelogram, 1/4" Inscr Circle, 3/32" Thick, 1/32" Corner Radius
Item #: 54748371
Brand: Sandvik Coromant
Model #: 5730990
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCMT |
| Insert Size | 21.52 |
| Material | Carbide |
| Length (mm) | 6.95 |
| Length (Decimal Inch) | 0.2737 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0937 |
| Thickness (mm) | 2.38 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.7938 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | 1115 |
| Coating | TiAlN/AlCr2O3 |
| Chip Breaker | MM |
| Insert Length (Decimal Inch) | 0.2737 |
| OverallLength (mm) | 7.75 |
| Overall Length (Decimal Inch) | 0.3052 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.0937 |
| ISO Number | DCMT 07 02 08-MM 1115 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | DCMT 07 02 08-MM 1115 |
| Primary Workpiece Material | M; S |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 6.95 |
| Maximum Depth of Cut (Decimal Inch) | 0.2737 |
| Insert Holding Method | Screw |
| Cutting Width (mm) | 6.95 |
| FullRadius | Yes |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Parallelogram |
