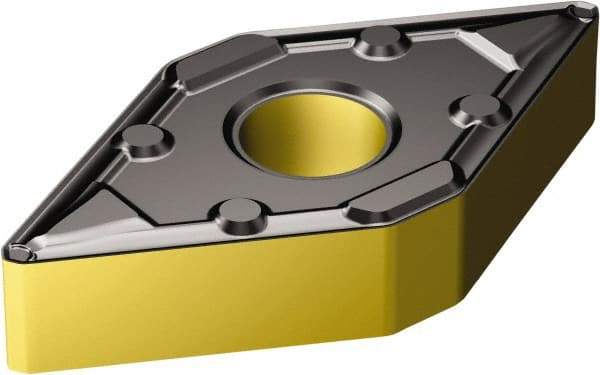

Sandvik Coromant - DNMX331 WF Grade 4315 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, 55° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 54736723
Brand: Sandvik Coromant
Model #: 6612949
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMX |
| Insert Size | 331 |
| Material | Carbide |
| Length (mm) | 11.23 |
| Length (Decimal Inch) | 0.4420 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | 4315 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | WF |
| Insert Length (Decimal Inch) | 0.4420 |
| OverallLength (mm) | 11.63 |
| Overall Length (Decimal Inch) | 0.4578 |
| Hole Diameter (mm) | 3.81 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | DNMX 11 04 04-WF 4315 |
| Relief Angle | 0 |
| Included Angle | 55 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
