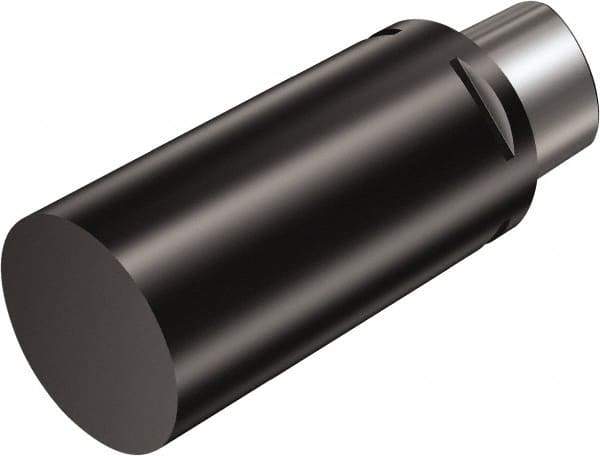

Sandvik Coromant - C5 Modular Connection, 100mm Diameter, Tool Holder Blank - 116mm Overall Length, 70mm Projection Flange to Nose End, 90mm Projection Gage Line to Nose End
Item #: 54736541
Brand: Sandvik Coromant
Model #: 5727934
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single tap chucks to accept various tap shank diameters without changing machine tool holding set-ups.
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Connection Size | C5 |
| Blank Diameter (mm) | 100.00 |
| Blank Diameter (Decimal Inch) | 3.9370 |
| Projection Gage Line to Nose End (Decimal Inch) | 3.5433 |
| Projection Gage Line to Nose End (mm) | 90.00 |
| Projection Flange to Nose End (mm) | 70.00 |
| Projection Flange to Nose End (Decimal Inch) | 2.7559 |
| Overall Length (mm) | 116.00 |
| Overall Length (Decimal Inch) | 4.5669 |
