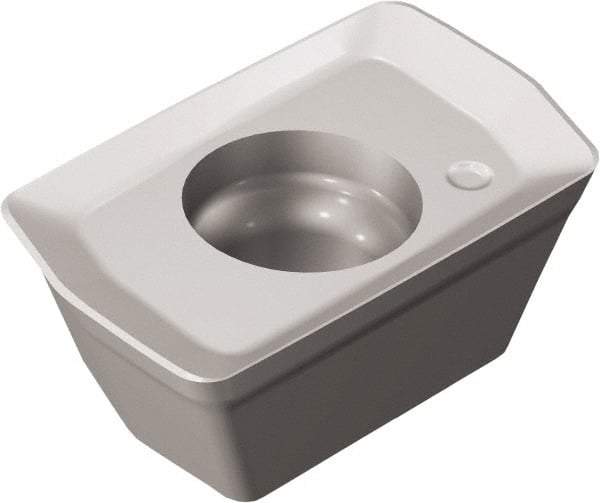

Sandvik Coromant - 390R070204 PL Grade 1130 Carbide Milling Insert - AlTiCrN Finish, 2.4mm Thick, 4mm Inscribed Circle, 0.4mm Corner Radius
Item #: 54733373
Brand: Sandvik Coromant
Model #: 6851167
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 390R |
| Insert Size | 070204 |
| Material | Carbide |
| Manufacturer's Grade | 1130 |
| Coating | AlTiCrN |
| Width (mm) | 4.06 |
| Width (Decimal Inch) | 0.1598 |
| Length (mm) | 10.00 |
| Inscribed Circle (mm) | 4.00 |
| Thickness (mm) | 2.40 |
| Thickness (Decimal Inch) | 0.0945 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Hole Diameter (mm) | 2.05 |
| Hole Diameter (Decimal Inch) | 0.0807 |
| Coating Process | PVD |
| Included Angle | 0 |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | PL |
| Maximum Depth of Cut (mm) | 5.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.2283 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | 390R-070204E-PL 1130 |
