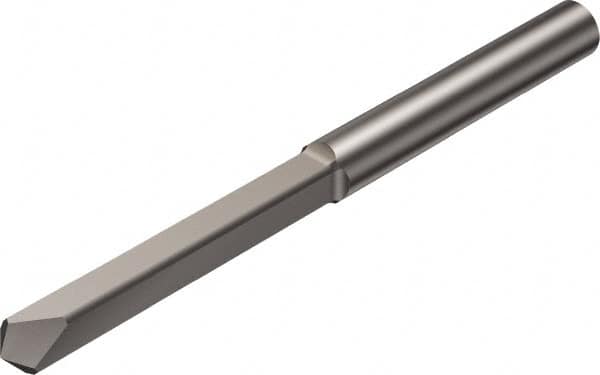

Die Drill Bit: 0.1181″ Dia, 120 °, Solid Carbide Bright/Polished Finish, Series HCx
Item #: 54732201
Brand: Sandvik Coromant
Model #: 5732737
Product Specifications
| Drill Bit Type | Die |
| Drill Bit Size (mm) | 3.00 |
| Tool Material | Carbide |
| Coating/Finish | Bright (Polished) |
| Flute Length (Decimal Inch) | 0.5906 |
| Flute Length (mm) | 15.00 |
| Drill Point Angle | 120 |
| Overall Length (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Shank Diameter (mm) | 3.00 |
| Coolant Through | No |
| Drill Bit Size (Decimal Inch) | 0.1181 |
| Material Grade | HM |
| Overall Length (Decimal Inch) | 1.5748 |
| Series | HCx |
| Number Of Flutes | 2 |
| Point Type | Proprietary |
| Cutting Direction | Right Hand |
| Tool Performance | High Performance |
| Primary Workpiece Material | Hardened Materials |
| Secondary Workpiece Material | Hardened Materials |
| Drill Point Length (mm) | 0.90 |
| Drill Point Length (Decimal Inch) | 0.0354 |
| Maximum Drilling Depth (Decimal Inch) | 0.4100 |
| Maximum Drilling Depth (mm) | 10.50 |
| Shank Length (Decimal Inch) | 0.9842 |
| Shank Length (mm) | 40.00 |
| Flute By Diameter Ratio | 3.5XD |
