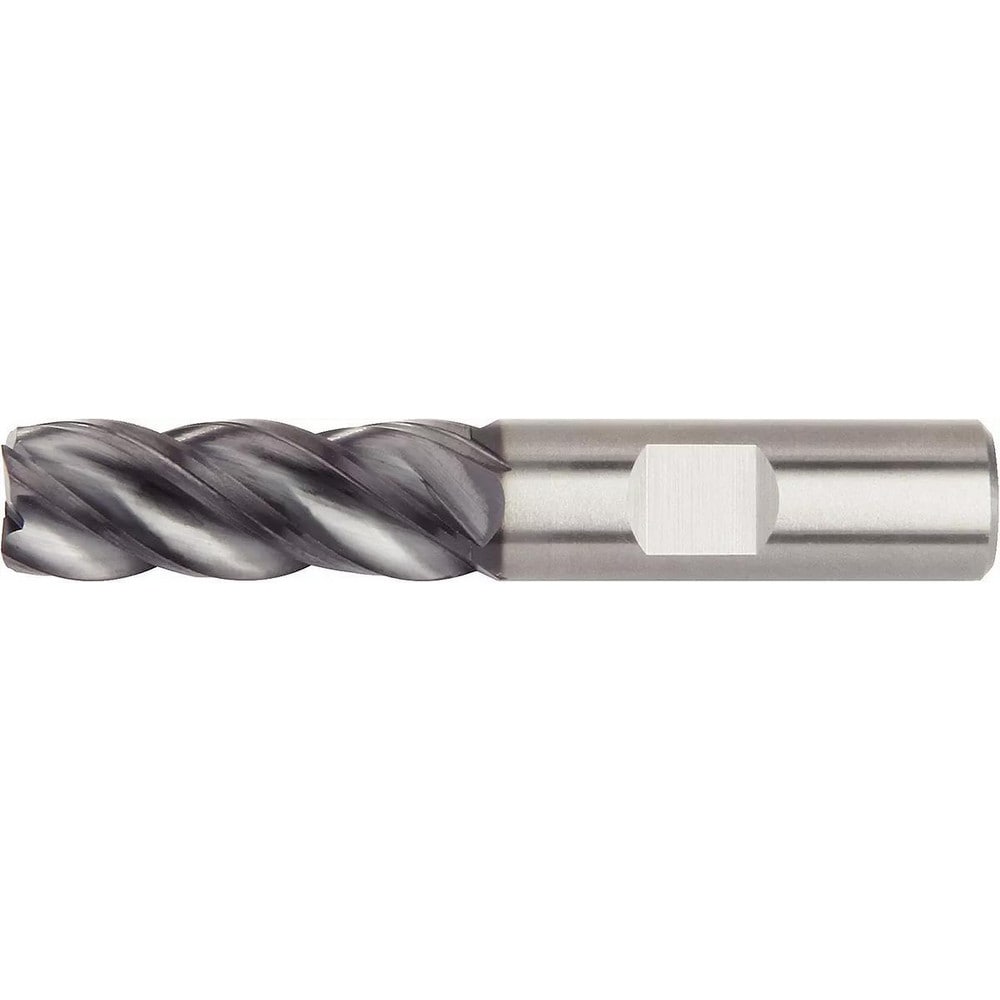

Corner Chamfer End Mill: 5/8" Dia, 1-5/8" LOC, 4 Flute, 0.0200" Chamfer Width, Solid Carbide
Item #: 34046995
Brand: Widia
Model #: 2837261
Product Specifications
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 1-5/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Chamfer Width (Decimal Inch) | 0.0200 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Overall Length (Decimal Inch) | 4.1300 |
| Chipbreaker | No |
| Chamfer Angle | 45 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.6250 |
| Length Type | Extended |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Reach Length (Decimal Inch) | 1.6250 |
| Reach Length (Inch) | 1-5/8 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; H; K; M |
| Secondary Workpiece Material | High Temperature Alloy |
| Secondary Workpiece Material Code | S |
| Material Grade | TiAlN-LW |
| Series | 4V65 |
