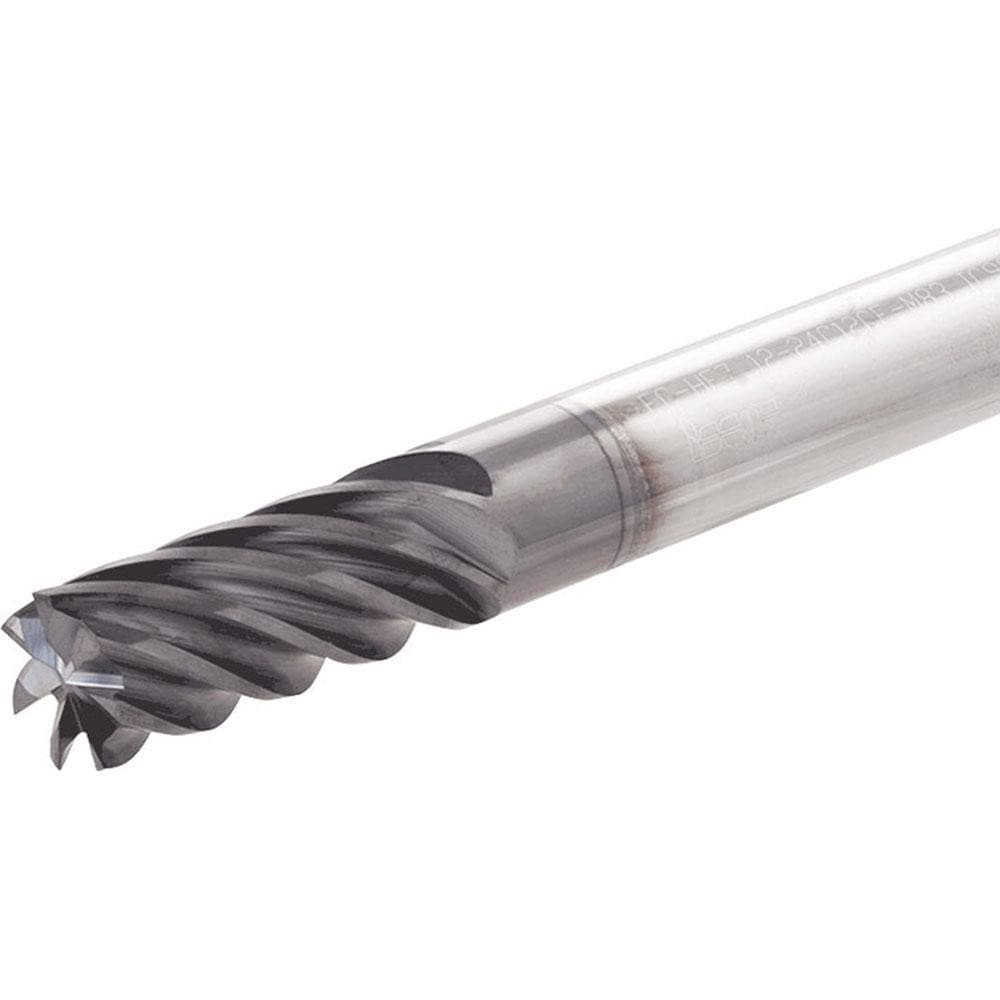

Corner Chamfer End Mill: 16.00 mm Dia, 64.00 mm LOC, 7 Flute, 0.30 mm Chamfer Width, Solid Carbide
Item #: 34000679
Brand: Tungaloy
Model #: 5668321
Product Specifications
| Mill Diameter (mm) | 16.00 |
| Number Of Flutes | 7 |
| Length of Cut (mm) | 64.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Chamfer Width (mm) | 0.30 |
| Overall Length (mm) | 131.00 |
| Coolant Through | No |
| Chipbreaker | No |
| Chamfer Angle | 45 |
| Length Type | Extra Long |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Finishing |
| Shank Diameter (mm) | 16.00 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; K; M |
| Material Grade | AH710 |
| Series | TEC-H7-CF |
