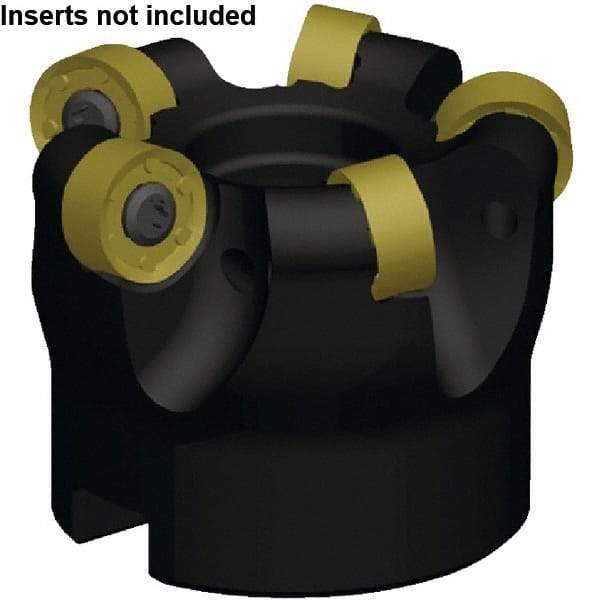

Kennametal - 144mm Cut Diam, 3.96mm Max Depth, 40mm Arbor Hole, 12 Inserts, RNGJ1605M0____ Insert Style, Indexable Copy Face Mill - RODEKA 16 Cutter Style, 13,000 Max RPM, 63mm High, Through Coolant, Series Rodeka
Item #: 54462338
Brand: Kennametal
Model #: 5338057
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 144.00 |
| Cutting Diameter (Decimal Inch) | 5.6690 |
| Maximum Depth of Cut (mm) | 3.96 |
| Maximum Depth of Cut (Decimal Inch) | 0.1560 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5750 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4800 |
| Series | Rodeka |
| Number of Cutter Inserts | 12 |
| Insert Compatibility | RNGJ1605M0____ |
| Cutter Style | RODEKA 16 |
| Through Coolant | Yes |
| Maximum RPM | 13000 |
| Hub Diameter (Decimal Inch) | 3.9370 |
| Cutting Direction | Right Hand |
| Overall Diameter (Decimal Inch) | 6.0510 |
| Maximum Cutting Diameter (Decimal Inch) | 6.299 |
