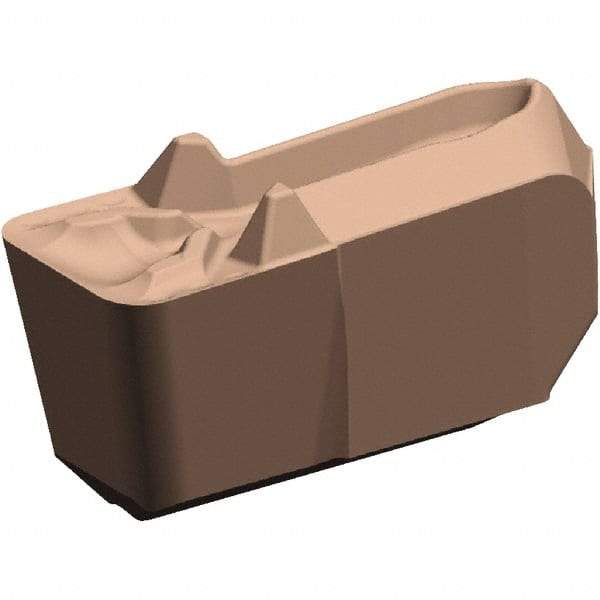

Kennametal - 6EG-U GUP Grade KCP10B, 6.48mm Cutting Width Carbide Grooving/Cut-Off Insert - 3.95mm Max Depth of Cut, Neutral, 0.8mm Corner Radius, TiOCN Finish
Item #: 54446950
Brand: Kennametal
Model #: 6012744
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EG-U |
| Insert Size | 6 |
| Material | Carbide |
| Cutting Width (mm) | 6.48 |
| Cutting Width (Decimal Inch) | 0.2550 |
| Maximum Depth of Cut (mm) | 3.95 |
| Maximum Depth of Cut (Decimal Inch) | 0.1560 |
| Manufacturer's Grade | KCP10B |
| Coating | TiOCN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.10 |
| Cutting Height (Decimal Inch) | 0.2010 |
| Lead Angle | 4 |
| Insert Seat Size | 6 |
| Chipbreaker | GUP |
| Multi-Use Tool | No |
| Multi-Use Application | Grooving |
| Minimum Corner Radius (Decimal Inch) | 0.0310 |
| Maximum Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Coating Process | CVD |
| Overall Length (mm) | 14.58 |
| Overall Length (Decimal Inch) | 0.5740 |
| Series | Beyond Evolution |
| Rake Angle | 27 |
| Rake | Positive |
| Overall Width (mm) | 6.48 |
| Overall Width (Decimal Inch) | 0.2550 |
| Insert Thickness (Decimal Inch) | 0.2010 |
