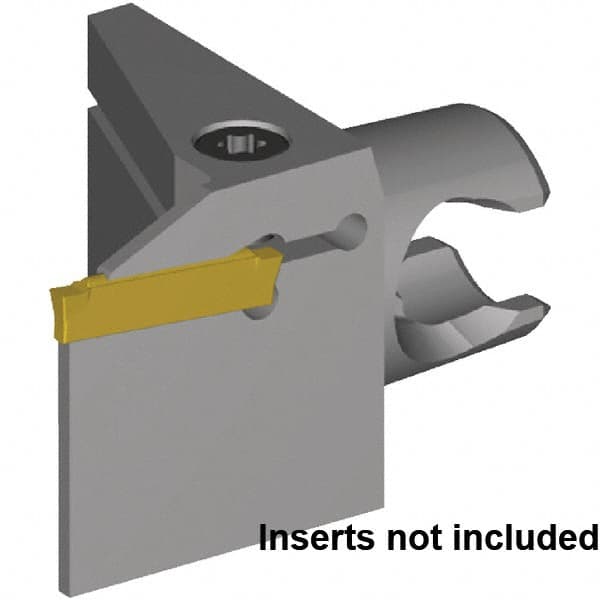

Kennametal - A4G0400M04P02GMP Insert, 30mm Head Length, 4mm Min Groove Width, Modular Grooving Blade Holder Head - Neutral Cut, System Size KM20, Series A4
Item #: 54431036
Brand: Kennametal
Model #: 3482937
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM20 |
| Series Name | A4 |
| Cutting Direction | Neutral |
| Modular Head Style | Blade Holder Head |
| Insert Style | A4G0400M04P02GMP |
| Head Length/Projection (mm) | 30.00 |
| Head Length/Projection (Decimal Inch) | 1.1810 |
| Through Coolant | NonThrough Coolant |
| Center to Cutting Edge (mm) | 10.50 |
| Center to Cutting Edge (Decimal Inch) | 0.4130 |
| Minimum Depth of Cut (mm) | 14.00 |
| Minimum Depth of Cut (Decimal Inch) | 0.5512 |
| Maximum Groove Width (mm) | 4.00 |
| Maximum Groove Width (Decimal Inch) | 0.1570 |
| Minimum Groove Width (mm) | 4.00 |
| Minimum Groove Width (Decimal Inch) | 0.1570 |
| Maximum Depth of Cut (mm) | 14.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5512 |
