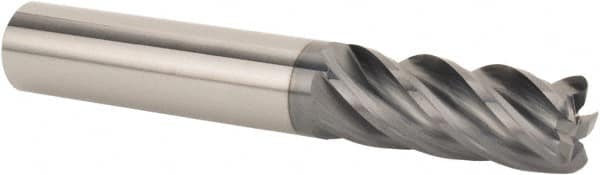

SGS - 8mm Diam, Variable Pitch, 18mm LOC, 5 Flute Solid Carbide 0.5mm Corner Radius Roughing End Mill - AlTiN Finish, 63mm OAL, 8mm Shank Diam, Single End, 37° Helix
Item #: 54425103
Brand: SGS
Model #: 47121
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Aluminum titanium nitride (AlTiN) is one of the most abrasive resistant and hardest of the coatings. It is commonly used for machining aircraft and aerospace material, nickel alloy, stainless steel, titanium, cast iron and carbon steel.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 8.00 |
| Mill Diameter (Decimal Inch) | 0.3150 |
| Number of Flutes | 5 |
| Pitch | Variable |
| Length of Cut (mm) | 18.00 |
| Length of Cut (Decimal Inch) | 0.7087 |
| Shank Diameter (mm) | 8.00 |
| End Type | Corner Radius |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Overall Length (mm) | 63.00 |
| Centercutting | NonCenter Cutting |
| Helix Angle | 37.00 |
| Extended Reach | No |
| Corner Radius (mm) | 0.50 |
| Coolant Induced | No |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Series/List | Z5CR |
