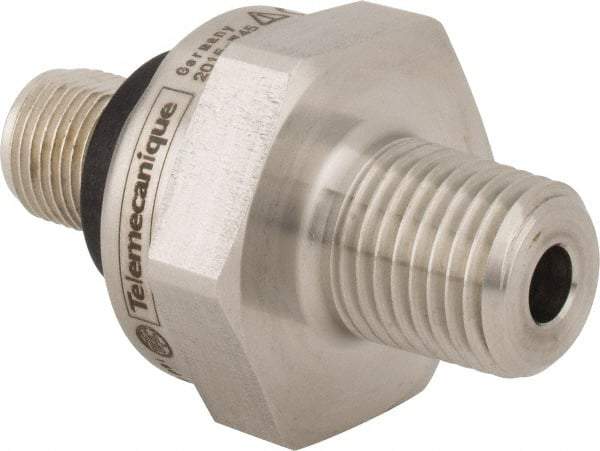

Telemecanique Sensors - 1/4-18 NPT (Male) Connector, 12 to 24 VDC, 300 psi Sensor, Shock and Vibration Resistant, Control Circuit Pressure Sensor - 26mm Long x 30mm Wide, IP65, IP67, IP69, For Use with OsiSense XM
Item #: 54424007
Brand: Telemecanique Sensors
Model #: XMLP300PD23
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Pressure Sensor Size (psi) | 300 |
| For Use With | OsiSense XM |
| Electrical Connector Type | 4-pin M12 Male |
| Fluid Connector Type | 1/4"-18 NPT (male) |
| Display Type | No Display |
| Input Voltage | 12-24 VDC |
| Output Signal (mA) | 4-20 |
| Electrical Circuit Type | Control Circuit |
| Ingress Protection Rating | IP65; IP67; IP69 |
| Resistance Features | Shock Resistant; Vibration Resistant |
| Maximum Operating Temperature (F) | 212 |
| Minimum Operating Temperature (F) | -22 |
| Overall Length (mm) | 26 |
| Overall Width/Diameter (mm) | 30 |
| Standards Met | CE; cULus; DIN 40050; EN 61326; EN/IEC 60068; EN/IEC 60529; EN/IEC 60947-1; EN/IEC 61000; RoHS Compliant |
