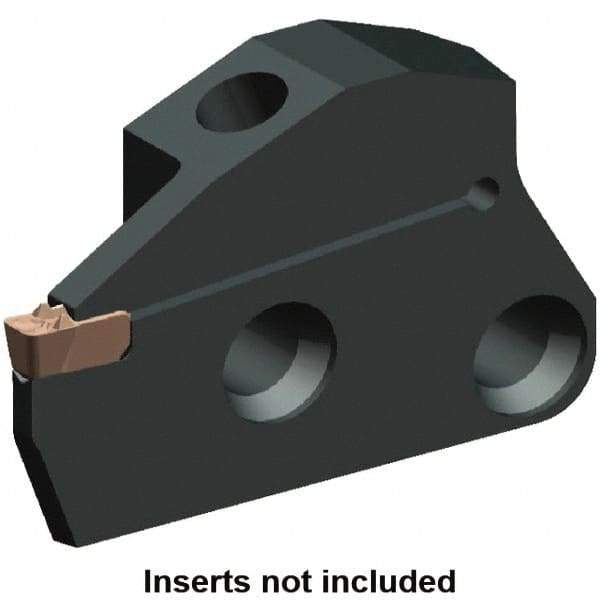

Kennametal - 2" Groove Width, 12mm Max Depth of Cut, Right Hand Cut, EVM Indexable Grooving Blade - 2 to 2.99mm Insert Width, 2 Seat Size, A2, A3, A4 Insert Style, Series Beyond Evolution
Item #: 54414925
Brand: Kennametal
Model #: 6030969
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Minimum Groove Width (mm) | 2.00 |
| Minimum Groove Width (Decimal Inch) | 0.0790 |
| Maximum Insert Width (mm) | 2.99 |
| Maximum Insert Width (Decimal Inch) | 0.1177 |
| Minimum Insert Width (mm) | 2.00 |
| Minimum Insert Width (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4730 |
| Blade Style | EVM |
| Series | Beyond Evolution |
| Blade Width (mm) | 1.55 |
| Blade Width (Decimal Inch) | 0.0610 |
| Maximum Groove Width (mm) | 2.00 |
| Maximum Groove Width (Decimal Inch) | 0.0790 |
| Overall Length (mm) | 47.75 |
| Overall Length (Decimal Inch) | 1.8800 |
| Cutting Height (mm) | 20.72 |
| Cutting Height (Decimal Inch) | 0.8160 |
| Insert Style | A2; A3; A4 |
| Insert Seat Size | 2 |
| Cartridge Size | 50 |
| Complete Insert Compatibility | EG0200M02P02 |
