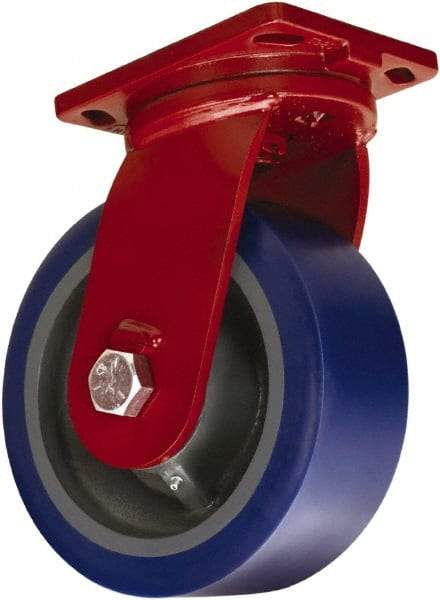

Hamilton - 10" Diam x 4" Wide x 12-1/2" OAH Top Plate Mount Swivel Caster - Polyurethane Mold on Forged Steel, 5,000 Lb Capacity, Tapered Roller Bearing, 6-1/2 x 7-1/2" Plate
Item #: 54323589
Brand: Hamilton
Model #: S-EPSD-104SYT
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Mount | Top Plate |
| Style | Swivel |
| Wheel Diameter (Inch) | 10 |
| Wheel Width (Inch) | 4 |
| Overall Height (Inch) | 12-1/2 |
| Load Capacity (Lb.) | 5000 |
| Wheel Material Type | Rubber |
| Plate Size (Inch) | 6-1/2 x 7-1/2 |
| Bearing Type | Tapered Roller |
| Finish/Coating | Red Enamel |
| Bolt Hole Spacing | 3-7/8 x 5-3/4 Slotted To 5-1/8 x 6-1/4 |
| Attaching Bolt Size (Inch) | 1/2 |
| Attaching Bolt Size (Decimal Inch) | 0.5000 |
| Applications | CNC Machined Ball Raceways; High Temp. (200 F) |
| Additional Information | Abrasion Resistant; Chemical Resistant; Floor Protection; Impact Resistant; Moisture Resistant; Quiet Operation; Rolling Ease |
| Wheel Material | Polyurethane Mold on Forged Steel |
