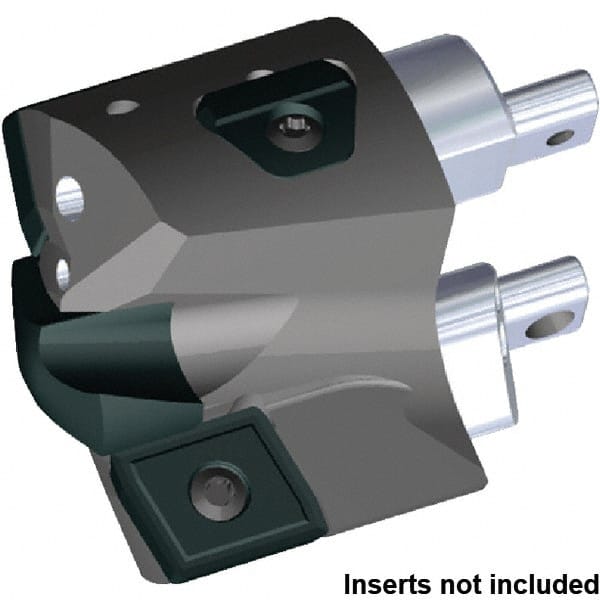

Series KSEM Plus, Head Connection FDS63, 70mm Max Drill Diam, Indexable Interchangeable Pilot Head KSEMP3400HPGM Pilot Drill, 34mm Pilot Drill Diam, Takes 3 Nonpilot Inserts, 40mm Head Length
Item #: 54320635
Brand: Kennametal
Model #: 5116141
Product Specifications
| Series | KSEM Plus |
| Head Connection Size | FDS63 |
| Pilot Type | Interchangeable Pilot |
| Maximum Drill Diameter (Decimal Inch) | 2.7560 |
| Maximum Drill Diameter (mm) | 70.00 |
| Number Of Non-pilot Inserts Used | 3 |
| Pilot Drill Diameter (Decimal Inch) | 1.3386 |
| Pilot Drill Diameter (mm) | 34.00 |
| Number of Non-Pilot Inserts | 3 |
| Pilot Drill Style | KSEMP3400HPGM |
| Head Length (Decimal Inch) | 1.5750 |
| Head Length (mm) | 40.00 |
| Drill Head Style | B1 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw; Clamp |
| Overall Length (mm) | 97.18 |
| Overall Length (Decimal Inch) | 3.8260 |
| Head Length to Pilot Tip (Decimal Inch) | 1.8580 |
| Head Length to Pilot Tip (mm) | 47.18 |
