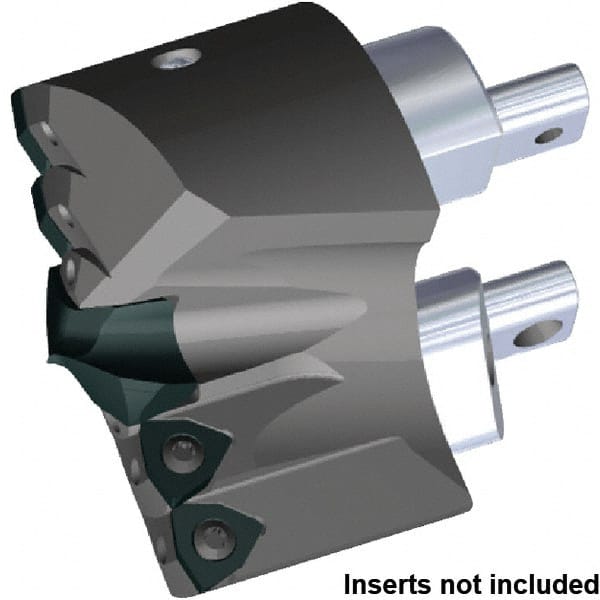

Series KSEM Plus, Head Connection FDS80, 80mm Max Drill Diam, Indexable Interchangeable Pilot Head KSEMP3100HPGM Pilot Drill, 31mm Pilot Drill Diam, Takes 5 Nonpilot Inserts, 52.76mm Head Length
Item #: 54320593
Brand: Kennametal
Model #: 5397518
Product Specifications
| Series | KSEM Plus |
| Head Connection Size | FDS80 |
| Pilot Type | Interchangeable Pilot |
| Maximum Drill Diameter (Decimal Inch) | 3.1500 |
| Maximum Drill Diameter (mm) | 80.00 |
| Number Of Non-pilot Inserts Used | 5 |
| Pilot Drill Diameter (Decimal Inch) | 1.2200 |
| Pilot Drill Diameter (mm) | 31.00 |
| Number of Non-Pilot Inserts | 5 |
| Pilot Drill Style | KSEMP3100HPGM |
| Head Length (Decimal Inch) | 2.0770 |
| Head Length (mm) | 52.76 |
| Drill Head Style | A1 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw; Clamp |
| Head Length to Pilot Tip (Decimal Inch) | 2.0770 |
| Head Length to Pilot Tip (mm) | 52.76 |
