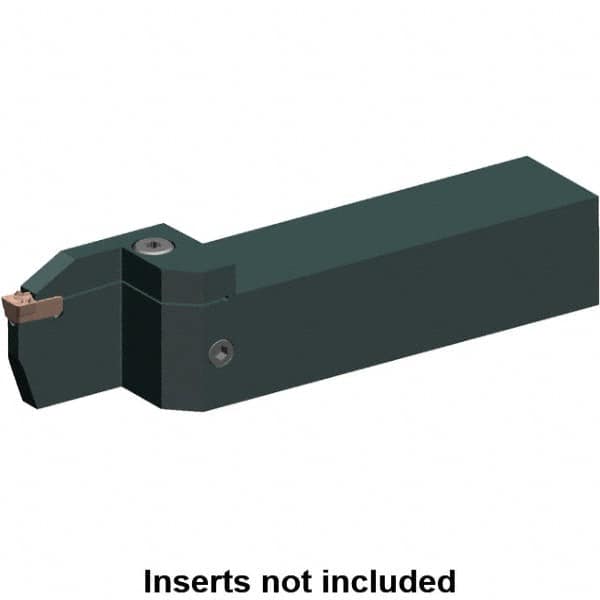

Kennametal - Right Hand Cut, 32mm Max Workpc Diam, EG0200M02P02 Insert, Indexable Cutoff Toolholder - 16mm Max Depth of Cut, 20mm Shank Width, 20mm Shank Height, 125mm OAL
Item #: 54319686
Brand: Kennametal
Model #: 5953960
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 16.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Maximum Workpiece Diameter (mm) | 32.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.2600 |
| Series | Beyond Evolution |
| Toolholder Style | EVSM |
| Insert Compatibility | EG0200M02P02 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9210 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7870 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7870 |
| Insert Seat Size | 2 |
| Insert Holding Method | Clamp |
| Through Coolant | No |
| Insert Width (mm) | 1.55 |
| Insert Width (Decimal Inch) | 0.0610 |
| Head Height (mm) | 27.00 |
| Head Height (Decimal Inch) | 1.0630 |
| Head Length (mm) | 31.00 |
| Head Length (Decimal Inch) | 1.2200 |
| Shank Length (mm) | 94.00 |
| Shank Length (Decimal Inch) | 3.7010 |
| Blade Width (mm) | 1.55 |
| Blade Width (Decimal Inch) | 0.0610 |
| Complete Insert Compatibility | EG0200M02P02 |
