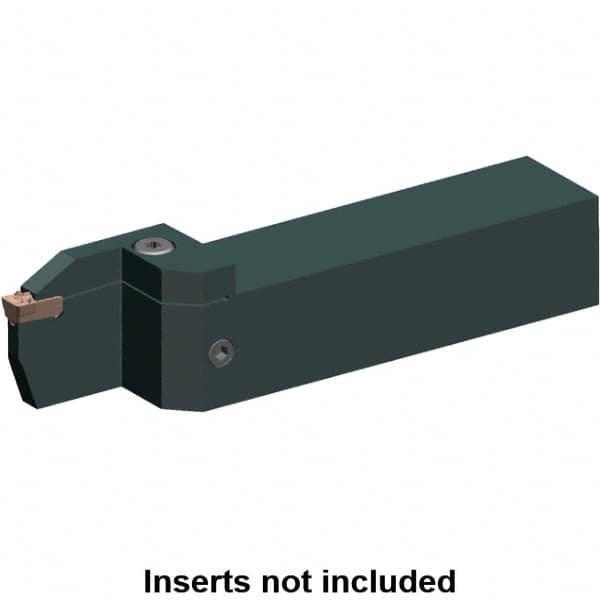

Kennametal - Right Hand Cut, 44mm Max Workpc Diam, EG0600M06P04 Insert, Indexable Cutoff Toolholder - 22mm Max Depth of Cut, 20mm Shank Width, 20mm Shank Height, 125mm OAL
Item #: 54319314
Brand: Kennametal
Model #: 5954255
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 22.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.8660 |
| Maximum Workpiece Diameter (mm) | 44.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.7320 |
| Series | Beyond Evolution |
| Toolholder Style | EVSM |
| Insert Compatibility | EG0600M06P04 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9210 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7870 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7870 |
| Insert Seat Size | 6 |
| Insert Holding Method | Clamp |
| Through Coolant | Yes |
| Insert Width (mm) | 5.25 |
| Insert Width (Decimal Inch) | 0.2070 |
| Head Height (mm) | 29.00 |
| Head Height (Decimal Inch) | 1.1420 |
| Head Length (mm) | 43.00 |
| Head Length (Decimal Inch) | 1.6930 |
| Shank Length (mm) | 82.00 |
| Shank Length (Decimal Inch) | 3.2280 |
| Blade Width (mm) | 5.25 |
| Blade Width (Decimal Inch) | 0.2070 |
| Complete Insert Compatibility | EG0600M06P04 |
