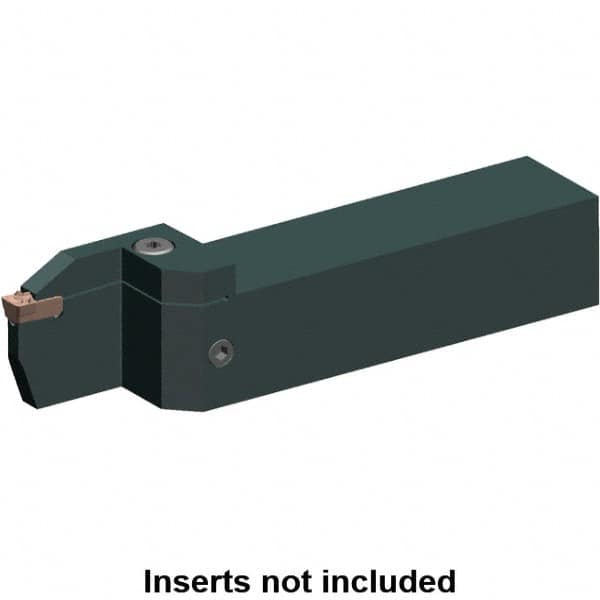

Kennametal - Left Hand Cut, 44mm Max Workpc Diam, EG0200M02P02 Insert, Indexable Cutoff Toolholder - 22mm Max Depth of Cut, 3/4" Shank Width, 3/4" Shank Height, 4-1/2" OAL
Item #: 54319025
Brand: Kennametal
Model #: 5956544
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 22.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.8660 |
| Maximum Workpiece Diameter (mm) | 44.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.7320 |
| Series | Beyond Evolution |
| Toolholder Style | EVSM |
| Insert Compatibility | EG0200M02P02 |
| Overall Length (mm) | 114.30 |
| Overall Length (Inch) | 4.5500 |
| Overall Length (Decimal Inch) | 4.5000 |
| Shank Width/Diameter (mm) | 19.05 |
| Shank Width/Diameter (Inch) | 3/4 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Shank Height (mm) | 19.05 |
| Shank Height (Inch) | 3/4 |
| Shank Height (Decimal Inch) | 0.7500 |
| Insert Seat Size | 2 |
| Insert Holding Method | Clamp |
| Through Coolant | No |
| Insert Width (mm) | 1.55 |
| Insert Width (Decimal Inch) | 0.0610 |
| Head Height (mm) | 28.05 |
| Head Height (Decimal Inch) | 1.1040 |
| Head Length (mm) | 38.00 |
| Head Length (Decimal Inch) | 1.4960 |
| Shank Length (mm) | 76.30 |
| Shank Length (Decimal Inch) | 3.0040 |
| Blade Width (mm) | 1.55 |
| Blade Width (Decimal Inch) | 0.0610 |
| Complete Insert Compatibility | EG0200M02P02 |
