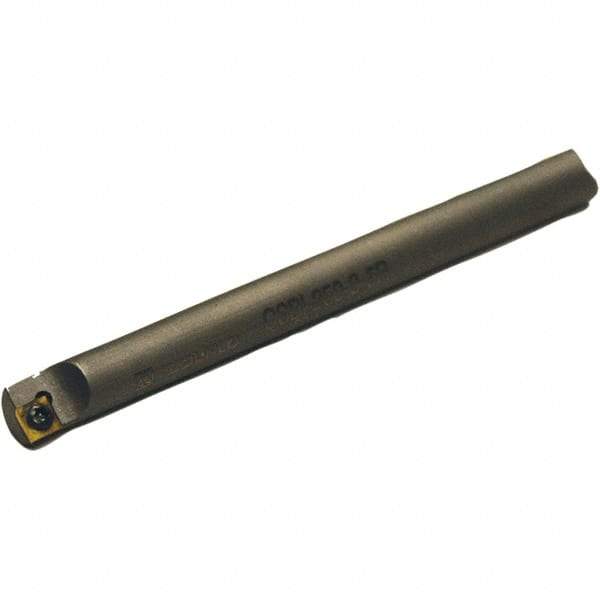

Tool-Flo - 0.285" Min Bore Diam, 4" OAL, 1/4" Shank Diam, CCBI Indexable Boring Bar - CDCD/G Insert, Screw Holding Method
Item #: 54237060
Brand: Tool-Flo
Model #: 9BCC255R
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | CCBI |
| Series | Bantam |
| Minimum Bore Diameter (Decimal Inch) | 0.2850 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 4.0000 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Insert Compatibility | CDCD/G |
| Through Coolant | No |
| Multi-Use Tool | No |
| Multi-Use Application | Boring |
| Insert Holding Method | Screw |
| Neck Diameter (Decimal Inch) | 0.2580 |
| Center to Cutting Edge (Decimal Inch) | 0.1450 |
| Insert Thickness (Decimal Inch) | 0.0400 |
| Insert Inscribed Circle (Decimal Inch) | 0.1560 |
| Complete Insert Compatibility | CDCD-500; CDCD-505; CDCD-51; CDCG-500L; CDCG-505L; CDCG-51L |
| Toolholder Material | Carbide |
