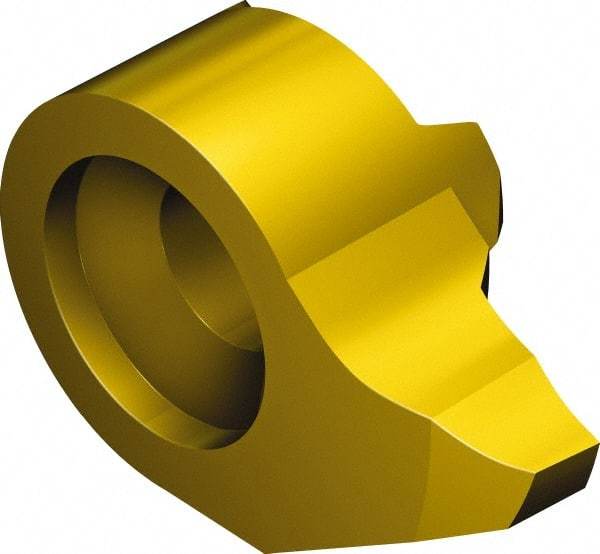

Sandvik Coromant - MB..T09307 T Grade 1025 Carbide Boring Insert - TiCN/TiN Finish, 7mm Inscr Circle, 0.0079" Corner Radius
Item #: 54228325
Brand: Sandvik Coromant
Model #: 5735940
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | MB..T093 |
| Insert Size | 07 |
| Manufacturer's Grade | 1025 |
| Inscribed Circle (mm) | 7.00 |
| Inscribed Circle (Decimal Inch) | 0.2800 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Coating | TiCN/TiN |
| Chipbreaker | T |
| Rake | Positive |
| ISO Number | MB-07T093-02-10R 1025 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Coating Process | PVD |
| Manufacturers Catalog Number | MB-07T093-02-10R 1025 |
