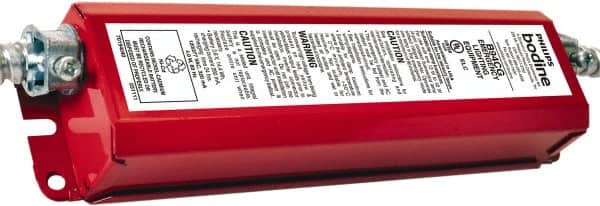

PHILIPS bodine - 1 Lamp, 120-277 Volt, 4 Pin Twin, Quad, Triple Twin Tube, Circline, Long Compact Fluorescent Emergency Ballast - 0 to 39, 40 to 79 Watt, Up to 1250 Lumens, 90 min Run Time, 2 Inch Long x 12 Inch Wide x 2-1/2 Inch High
Item #: 54228051
Brand: PHILIPS bodine
Model #: B84CG
Exact Tooling IR#: 04
Features and Benefits
Instant start ballasts turn on without a delay (<0.1 seconds) or flicker. They are best suited for applications with limited on/off cycles each day. They are economical and the starting voltage is high enough to start a discharge without the need for heating electrodes. 10,000 to 15,000 switch cycles before failure.
| Product Specifications | |
|---|---|
| Lamp Type | 4-Pin Twin; Quad; Triple Twin-Tube; Circline; Long Compact |
| Lamp Wattage Range | 0-39; 40-79 |
| Voltage | 120/277 |
| Number of Lamps | 1 |
| Lamp Starting Method | Instant Start |
| Run Time (Minutes) | 90 |
| Input Current (mA) | 290 |
| Output Lumens | Up to 1250 |
| Minimum Starting Temperature (F) | 32 |
| Size (L x W x H) | 2 x 12 x 2.5 |
| Additional Information | Material: Steel |
