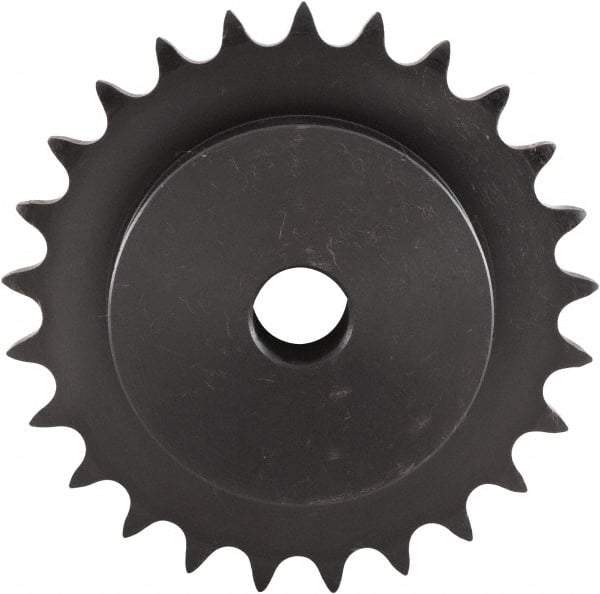

U.S. Tsubaki - 27 Teeth, 1/2" Chain Pitch, Chain Size 40, Plain Bore Sprocket - 5/8" Bore Diam, 4.307" Pitch Diam, 4.58" Outside Diam
Item #: 54198783
Brand: U.S. Tsubaki
Model #: 40B27
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Plain Bore Sprocket |
| Number of Teeth | 27 |
| Chain Pitch (Inch) | 0.500 |
| Chain Size Number | 40 |
| Maximum Bore Diameter (Inch) | 2-1/4 |
| Bore Diameter (Inch) | 5/8 |
| Bore Diameter (mm) | 15.875 |
| Outside Diameter (Decimal Inch) | 4.5800 |
| Pitch Diameter (Decimal Inch) | 4.3070 |
| PSC Code | 3020 |
