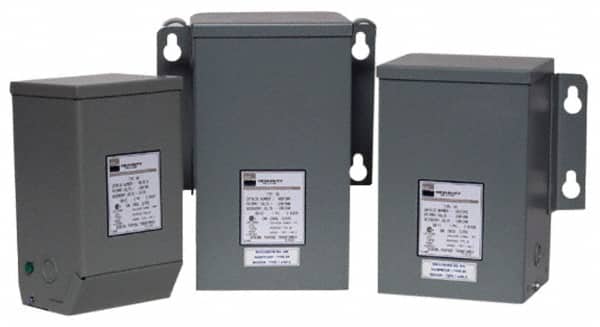

Sola/Hevi-Duty - 1 Phase, 120/208/240/277 Volt Input, 120/240 Volt Output, 60 Hz, 3 kVA, General Purpose Transformer - 4, 12, 3R, 4X NEMA Rating, 239°F Temp Rise, 10 Inch Wide x 7 Inch Deep x 12 Inch High, Indoor, Outdoor, Wall Mount
Item #: 54073176
Brand: Sola/Hevi-Duty
Model #: HS12F3AS
Exact Tooling IR#: 04
Features and Benefits
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Power Rating (kVA) | 3.0000 |
| Input Voltage | 120/208/240/277 |
| Output Voltage | 120/240 V |
| Number of Phases | 1 |
| Recommended Environment | Indoor; Outdoor |
| NEMA Enclosure Rating | 4; 12; 3R; 4X |
| Temperature Rise (F) | 239 |
| Frequency Rating (Hz) | 60 |
| Mounting Type | Wall Mount |
| Overall Width (mm) | 254 |
| Overall Width (Decimal Inch) | 10.0000 |
| Overall Height (mm) | 304.80 |
| Overall Height (Decimal Inch) | 12 |
| Overall Depth (Decimal Inch) | 7 |
| Overall Depth (mm) | 177.80 |
| Standards Met | CSA C22.2 No. 47 or No. 66; cULus E25872; E77014; UL 1561/EC62; UL 506; UL Listed |
