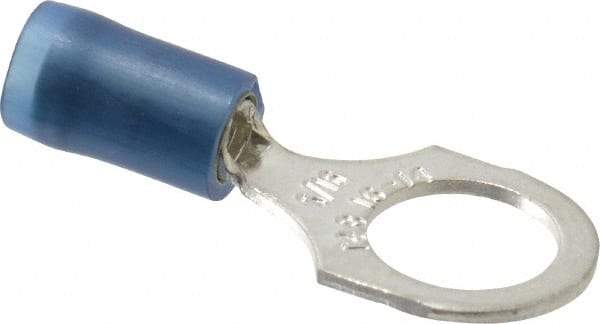

Thomas & Betts - 18-14 AWG Partially Insulated Crimp Connection D Shaped Ring Terminal - 5/16" Stud, 1.08" OAL x 0.47" Wide, Tin Plated Copper Contact
Item #: 54063391
Brand: Thomas & Betts
Model #: RB14-516
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Terminal Type | D Shaped |
| Insulation Type | Partially Insulated |
| Connection Type | Crimp |
| Compatible Wire Size (AWG) | 18-14 |
| Stud Size (Inch) | 5/16 |
| Color | Blue |
| Contact Material | Copper |
| Insulation Material | Nylon |
| Ring Width (Decimal Inch) | 0.4700 |
| Overall Length (Decimal Inch) | 1.0800 |
| Contact Plating | Tin |
| Standards Met | CSA 22.2; CSA Certified; RoHS Compliant; UL 486A; UL 486B; UL 94 V-2; UL File E9809; UL Listed |
