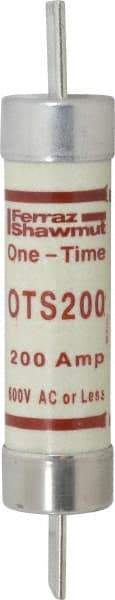

Ferraz Shawmut - 300 VDC, 600 VAC, 200 Amp, Fast-Acting General Purpose Fuse - Clip Mount, 9-5/8" OAL, 20 at DC, 50 at AC kA Rating, 1-13/16" Diam
Item #: 54012059
Brand: Ferraz Shawmut
Model #: OTS200
Exact Tooling IR#: 04
Features and Benefits
General purpose or class H non-renewable cartridge fuse have a single element and two cylindrical end caps designed for disposable, one-time use
Fast acting fuses refer to the amount of time that a fuse can withstand a current before overload. They are used to protect sensitive equipment.
| Product Specifications | |
|---|---|
| Fuse Type | General Purpose |
| Fuse Class | K5 |
| Amperage | 200 |
| Voltage | 300 VDC; 600 VAC |
| Fuse Timing | Fast-Acting |
| Fuse Body Type | Cylindrical |
| Overall Length (mm) | 244 |
| Overall Length (Inch) | 9-5/8 |
| Overall Diameter (mm) | 46.00 |
| Overall Diameter (Inch) | 1-13/16 |
| Material | Paper; Polyester |
| Mounting Type | Clip |
| Rejection Setting | NonRejecting |
| Interrupting Rating (kA) | 20 @ DC; 50 @ AC |
| Standards Met | CSA C22.2 No. 248.9 Certified; UL 248; UL Listed 248-9 File E2137 |
