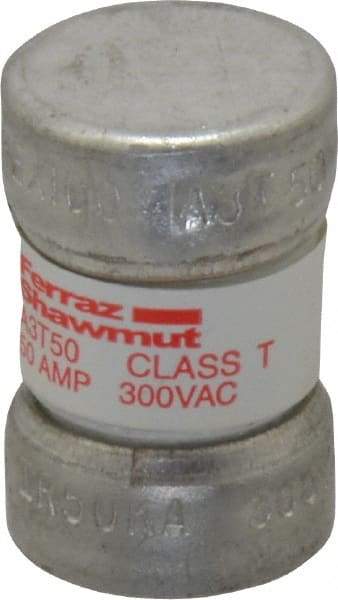

Ferraz Shawmut - 160 VDC, 300 VAC, 50 Amp, Fast-Acting General Purpose Fuse - Clip Mount, 7/8" OAL, 200 at AC, 50 at DC kA Rating, 9/16" Diam
Item #: 54007117
Brand: Ferraz Shawmut
Model #: A3T50
Exact Tooling IR#: 04
Features and Benefits
General purpose or class H non-renewable cartridge fuse have a single element and two cylindrical end caps designed for disposable, one-time use
Fast acting fuses refer to the amount of time that a fuse can withstand a current before overload. They are used to protect sensitive equipment.
| Product Specifications | |
|---|---|
| Fuse Type | General Purpose |
| Fuse Class | T |
| Amperage | 50 |
| Voltage | 160 VDC; 300 VAC |
| Fuse Timing | Fast-Acting |
| Fuse Body Type | Cylindrical |
| Overall Length (mm) | 22.40 |
| Overall Length (Inch) | 7/8 |
| Overall Length (Decimal Inch) | 0.8800 |
| Overall Diameter (mm) | 14.10 |
| Overall Diameter (Inch) | 9/16 |
| Overall Diameter (Decimal Inch) | 0.5600 |
| Material | GMG |
| Mounting Type | Clip |
| Rejection Setting | Rejecting |
| Interrupting Rating (kA) | 200 @ AC; 50 @ DC |
| Standards Met | CSA C22.2 No. 248.15 Certified; UL 248; UL Listed 248-15 File E2137 |
