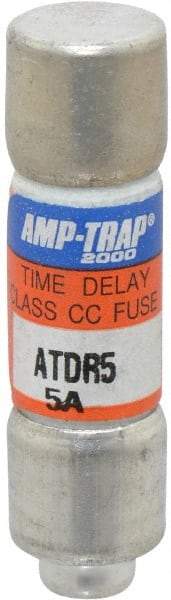

Ferraz Shawmut - 300 VDC, 600 VAC, 5 Amp, Time Delay General Purpose Fuse - Clip Mount, 1-1/2" OAL, 100 at DC, 200 at AC kA Rating, 13/32" Diam
Item #: 54003579
Brand: Ferraz Shawmut
Model #: ATDR5
Exact Tooling IR#: 04
Features and Benefits
General purpose or class H non-renewable cartridge fuse have a single element and two cylindrical end caps designed for disposable, one-time use
Time delay fuses, also known as duel-element fuses, are designed to allow for a surge in electricity during a short time before overloading or shorting out. They can protect equipment from overload and allow for greater starting amperage.
| Product Specifications | |
|---|---|
| Fuse Type | General Purpose |
| Fuse Class | CC |
| Amperage | 5 |
| Voltage | 300 VDC; 600 VAC |
| Fuse Timing | Time Delay |
| Fuse Body Type | Cylindrical |
| Overall Length (mm) | 38.10 |
| Overall Length (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 1.5000 |
| Overall Diameter (mm) | 10.40 |
| Overall Diameter (Inch) | 13/32 |
| Overall Diameter (Decimal Inch) | 0.4100 |
| Material | Fiberglass; GMG |
| Mounting Type | Clip |
| Rejection Setting | Rejecting |
| Interrupting Rating (kA) | 100 @ DC; 200 @ AC |
| Standards Met | CSA C22.2 No. 248.4 Certified; UL Listed 248; UL Listed 248-4 File 2137 |
