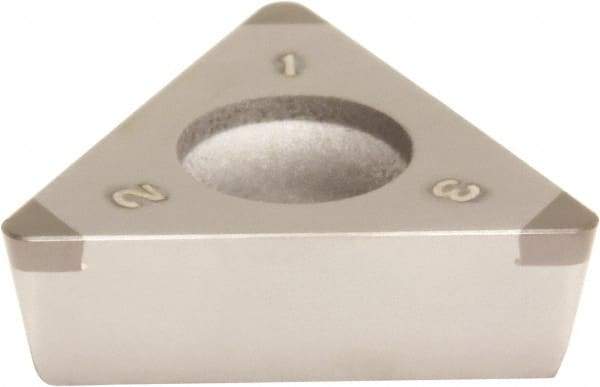

Sumitomo - 3NU-TPGA332 Grade BN350 PCBN Turning Insert - Uncoated, 60° Triangle, 3/8" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 53978722
Brand: Sumitomo
Model #: U100052
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | 3NU-TPGA |
| Insert Size | 332 |
| Material | PCBN |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | BN350 |
| Coating | Uncoated |
| Hole Diameter (Decimal Inch) | 0.1693 |
| Relief Angle | 11 |
| Included Angle | 60 |
| Maximum Depth of Cut (Decimal Inch) | 0.0150 |
| Insert Holding Method | Screw |
| Shape | Triangle |
