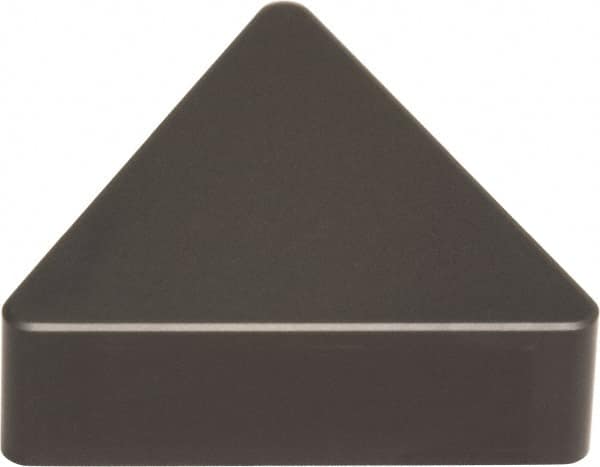

Sumitomo - TNG222 Grade BNS800 PCBN Turning Insert - Uncoated, 60° Triangle, 1/4" Inscr Circle, 1/8" Thick, 1/32" Corner Radius
Item #: 53974556
Brand: Sumitomo
Model #: 16EJAPM
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | TNG |
| Insert Size | 222 |
| Material | PCBN |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | BNS800 |
| Coating | Uncoated |
| Relief Angle | 0 |
| Included Angle | 60 |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Insert Holding Method | Clamp |
| Shape | Triangle |
