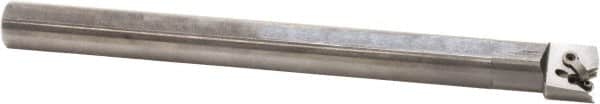

Sumitomo - 1.47" Min Bore Diam, 12" OAL, 1-1/4" Shank Diam, A-MTFN Indexable Boring Bar - TNMG 332 Insert, Pin & Clamp Holding Method
Item #: 53972303
Brand: Sumitomo
Model #: U101964
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-MTFN |
| Series | ANSI |
| Minimum Bore Diameter (Decimal Inch) | 1.4700 |
| Hand of Holder | Left Hand |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Compatibility | TNMG 332 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Clamp |
| Rake | Positive |
| Lead Angle | 0 |
| Center to Cutting Edge (Decimal Inch) | 0.7650 |
| Insert Thickness (Inch) | 3/16 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Rake Angle | 12 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| Complete Insert Compatibility | TNMG 332 |
| Toolholder Material | Steel |
