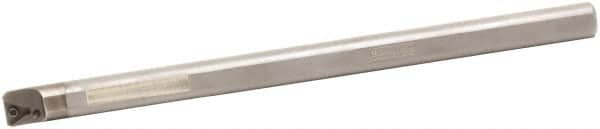

Sumitomo - 0.48" Min Bore Diam, 6" OAL, 3/8" Shank Diam, E-STFC Indexable Boring Bar - TCMT 21.51 Insert, Screw Holding Method
Item #: 53971677
Brand: Sumitomo
Model #: U101809
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E-STFC |
| Series | ANSI-ISO |
| Minimum Bore Diameter (Decimal Inch) | 0.4800 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Compatibility | TCMT 21.51 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 0 |
| Center to Cutting Edge (Decimal Inch) | 0.2500 |
| Insert Thickness (Inch) | 3/32 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Rake Angle | -15 |
| Coolant Hole Diameter (Decimal Inch) | 0.0930 |
| Complete Insert Compatibility | TCMT 21.51 |
| Toolholder Material | Carbide |
