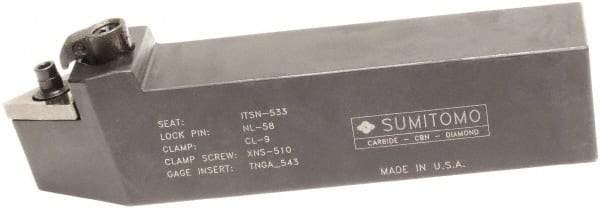

Sumitomo - MTEN, Neutral Cut, 30° Lead Angle, 1-1/4" Shank Height x 1-1/4" Shank Width, Negative Rake Indexable Turning Toolholder - 7" OAL, TNMG 54 Insert Compatibility, Series Multi-Option
Item #: 53971420
Brand: Sumitomo
Model #: U104036
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | MTEN |
| Rake | Negative |
| Rake Angle | -5 |
| Series | Multi-Option |
| Lead Angle | 30 |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 7.0000 |
| Insert Compatibility | TNMG 54 |
| Multi-Use Tool | No |
| Insert Holding Method | Pin or Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.6250 |
| Center to Cutting Edge (Decimal Inch) | 0.6250 |
