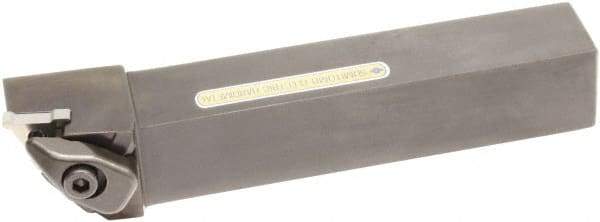

Sumitomo - DTR, Left Hand Cut, -3° Lead Angle, 25mm Shank Height x 25mm Shank Width, Negative Rake Indexable Turning Toolholder - 150mm OAL, TRM 5517 Insert Compatibility, Series SumiTurn T-Rex
Item #: 53971354
Brand: Sumitomo
Model #: 2M00ABD
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | DTR |
| Rake | Negative |
| Rake Angle | -7, -5 |
| Series | SumiTurn T-Rex |
| Lead Angle | -3 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | TRM 5517 |
| Multi-Use Tool | No |
| Insert Holding Method | Hole & Top Clamp |
| Back of Bar to Cutting Edge (mm) | 35.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.3780 |
| Head Length (mm) | 32.00 |
| Head Length (Decimal Inch) | 1.2598 |
