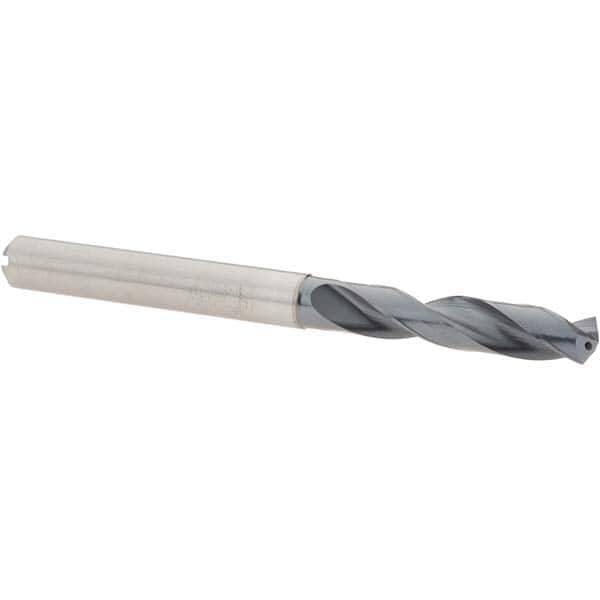

Screw Machine Length Drill Bit: 0.3386″ Dia, 135 °, Solid Carbide Coated, Straight-Cylindrical Shank, Series MDW-HGS
Item #: 53968533
Brand: Sumitomo
Model #: 5VHY062
Product Specifications
| Drill Bit Size (mm) | 8.60 |
| Tool Material | Solid Carbide |
| Coating/Finish | Coated |
| Drill Point Angle | 135 |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3543 |
| Drill Bit Size (Decimal Inch) | 0.3386 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Shank Diameter (mm) | 9.00 |
| Series | MDW-HGS |
| Web Configuration | Tapered |
| Number of Margins | 2 |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 1.3346 |
| Maximum Drilling Depth (mm) | 33.90 |
| Shank Length (Decimal Inch) | 2.1654 |
| Shank Length (mm) | 55.00 |
| Drill Point Length (mm) | 1.78 |
| Drill Point Length (Decimal Inch) | 0.0701 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | h8 |
| Flute Length (Decimal Inch) | 1.7717 |
| Flute Length (mm) | 45.00 |
| Drill Bit Size Range (Decimal Inch) | 0.3000 to 0.3500 |
| Drill Bit Size Range (mm) | 8.00 to 9.50 |
