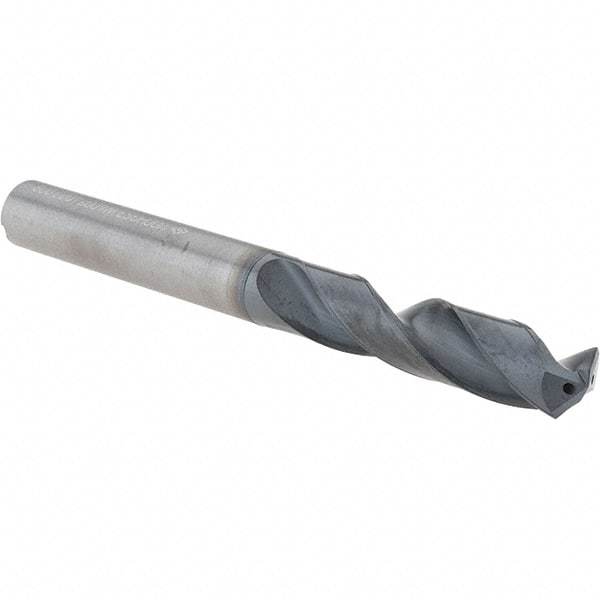

Sumitomo - 11mm 135° Solid Carbide Screw Machine Drill Bit - TiAlCr/TiSi Finish, 55mm Flute Length, 116mm OAL, Through Coolant
Item #: 53967790
Brand: Sumitomo
Model #: 5VHY086
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum chromium (TiAlCr) and titanium silicon (TiSi) is a super multi-layered coating. The TiAlCr/TiSi coating is used for general purpose applications without coolant thru
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.4331 |
| Drill Bit Size (mm) | 11.00 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlCr/TiSi |
| Coolant Through | Yes |
| Flute Length (mm) | 55.00 |
| Flute Length (Decimal Inch) | 2.1654 |
| Overall Length (mm) | 116.00 |
| Overall Length (Decimal Inch) | 4.5669 |
| Flute Length x Diameter Ratio | 3xD |
| Shank Diameter (mm) | 11.00 |
| Shank Diameter (Decimal Inch) | 0.4331 |
| Shank Length (mm) | 61.00 |
| Shank Length (Decimal Inch) | 2.4016 |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Web Configuration | Tapered |
| Series/List | MDW-HGS |
